You’re a solar professional or serious installer, and you need a meter that won’t flinch at 1500V DC strings. You need accuracy you can trust, safety you can rely on, and features that save you time on the roof. Is the premium-priced Fluke 283FC/PV worth buying,Fluke 283FC/PV pros cons,should I buy Fluke 283FC/PV,Fluke 283FC vs alternatives,best solar multimeter kit,Fluke 283FC/PV honest assessment the right tool for your kit, or is it overkill? After weeks of hands-on testing in real-world solar scenarios, we’ve put this high-voltage kit through its paces to give you a definitive answer. This isn’t just a spec sheet review; it’s an honest assessment of whether this investment delivers the safety and performance it promises. For those ready to see if this is the best solar multimeter kit for their needs, let’s dive in.

Table of Contents

What Is Fluke 283FC/PV Kit – CAT III 1500V True-RMS Digital Multimeter with 60A Wireless AC/DC Current Clamp and MC4 Connectors (Pack of 1)?

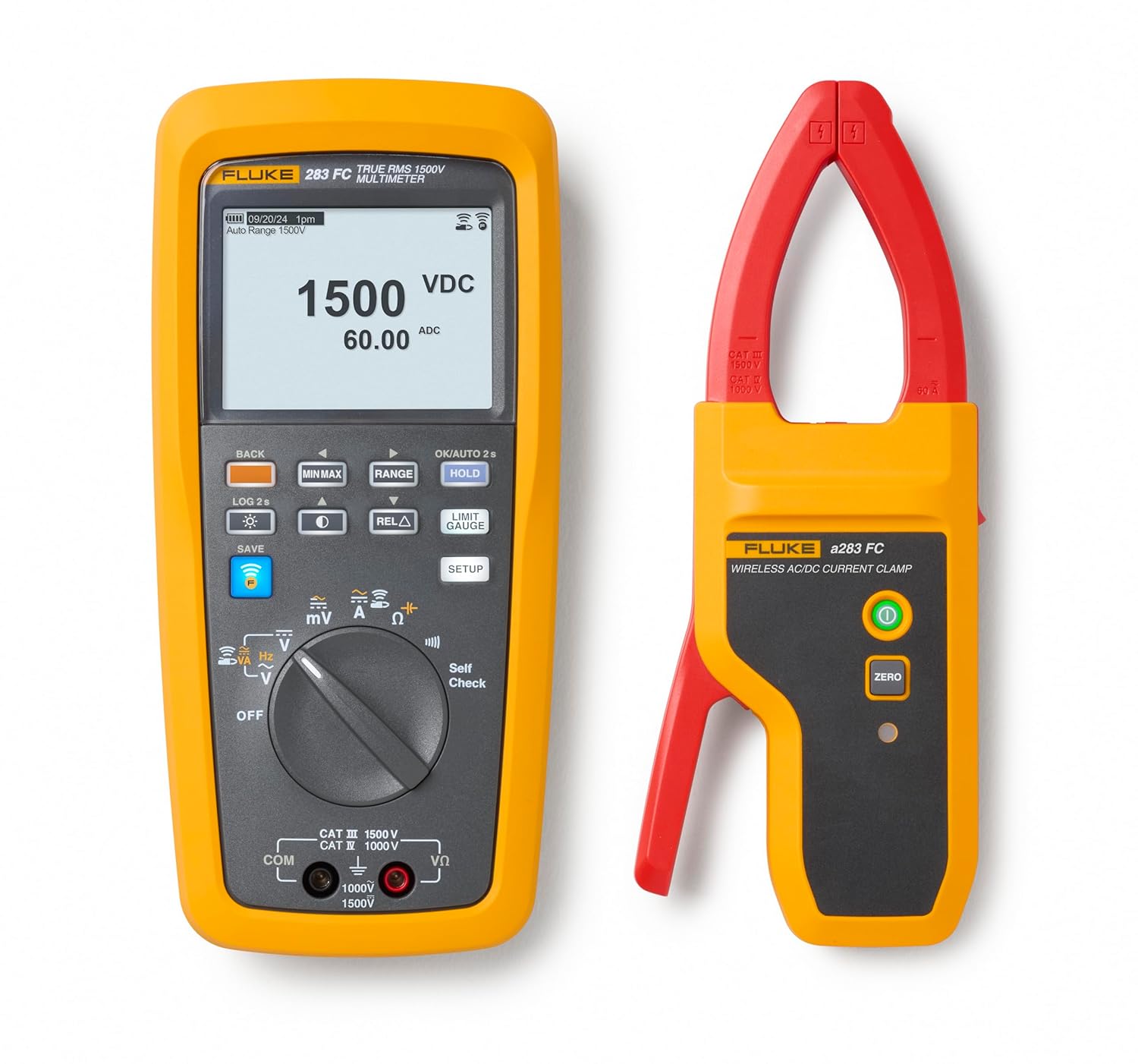

This isn’t your average multimeter. The Fluke 283FC/PV is a purpose-built, professional-grade diagnostic system designed for high-voltage DC environments, specifically targeting solar photovoltaic (PV) installations, wind power, and data centers. At its core, it’s a CAT III 1500V / CAT IV 1000V True-RMS digital multimeter paired with a wireless 60A AC/DC current clamp. The “PV” designation means it comes with specialized, safety-rated accessories like Staubli MC4 connectors, allowing you to directly and safely interface with live solar strings. The primary audience is commercial solar technicians, utility-scale installers, and advanced electricians who regularly work with systems where safety and precision are non-negotiable. It represents Fluke’s commitment to pushing the boundaries of test tool safety for renewable energy, a sector with unique and demanding electrical hazards. You can learn more about Fluke’s engineering standards directly from the Fluke Corporation website. So, when asking should I buy Fluke 283FC/PV, you’re really asking if you need this level of specialized, industrial-grade equipment.

Key Features & Specifications

Standout Features

CAT III 1500V / CAT IV 1000V Safety Rating: This is the cornerstone. It’s engineered to withstand high-energy transients found in utility-connected and industrial environments, providing a critical safety margin when working on live 1000V+ DC solar arrays.
Included Staubli MC4 Test Leads: These aren’t an afterthought. They are CAT III 1500V rated and allow for quick, secure, and safe connections directly to solar module or string connectors, eliminating the need for makeshift probes.
Wireless A283FC Current Clamp: This clamp communicates via Bluetooth to the multimeter, enabling safe, non-contact current measurements up to 60A AC/DC. It’s invaluable for troubleshooting individual strings without breaking the circuit.
True-RMS Accuracy: Provides correct measurements on non-linear loads (like inverters), giving you reliable data for troubleshooting complex waveforms.
Visual and Audio Polarity Indicators: A huge safety and time-saving feature for PV work. It helps prevent accidental reverse polarity connections when hooking up modules, which can cause serious damage.
Fluke Connect Wireless Capability: The meter can stream live data to your smartphone via the Fluke Connect app, allowing you to log data, document readings, and monitor trends from a safe distance.
Magnetic Hanging Strap & Bright Backlit Display: Practical features for real work. The strap frees your hands, and the excellent display is readable in bright sunlight or dark combiner boxes.
Rugged Custom Hard Case: Protects your significant investment from the bumps and drops of job site travel.

When performing a Fluke 283FC/PV honest assessment, these features collectively address the specific pain points of high-voltage field technicians. For a deeper look at how it stacks up, check out our comprehensive multimeter buying guide.

Technical Specifications

Specification	Detail
Brand & Model	Fluke 283FC/PV
Safety Rating	CAT III 1500V, CAT IV 1000V
DC Voltage Range	Up to 1500V
Current Clamp (Wireless)	60A AC/DC (A283FC)
Display	Backlit digital with illuminated buttons
Power Source	2 x AA batteries (included)
Connectivity	Bluetooth (Fluke Connect)
Item Weight	4.61 lbs (Kit in case)
Warranty	Limited Lifetime (Meter), 1 Year (Clamp)

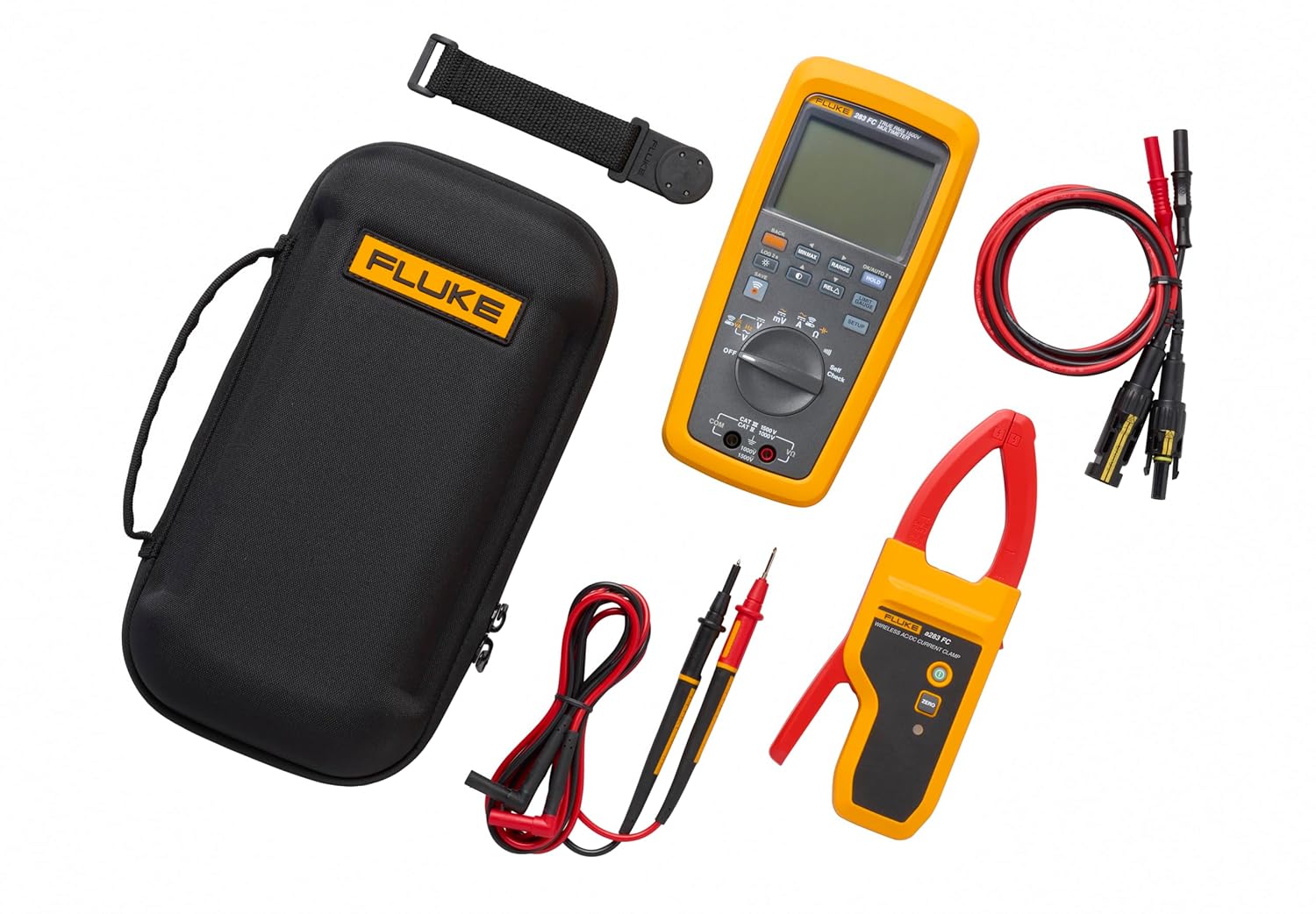

What’s Included in the Box

Unboxing the Fluke 283FC/PV feels like opening a professional toolkit. Everything is securely nestled in custom foam within a heavy-duty hard case. The completeness is a major part of its value proposition. You get the Fluke 283 FC True-RMS Digital Multimeter, the wireless A283 FC True-RMS AC/DC Current Clamp, and a full suite of safety-rated leads: the specialized CAT III 1500V Staubli MC4 test leads and the versatile TL175-HV CAT III 1500V/CAT IV 1000V silicone test leads. Also included are a magnetic hanging strap, alligator clips, a thermocouple probe, and the necessary batteries. The build quality is instantly apparent—the meter and clamp feel robust, the silicone leads are supple yet durable, and the MC4 connectors are precision-made. Nothing feels cheap or like an accessory you’ll need to replace. This comprehensive kit means you can start working safely right out of the box, which is a crucial consideration in our Fluke 283FC/PV pros cons analysis.

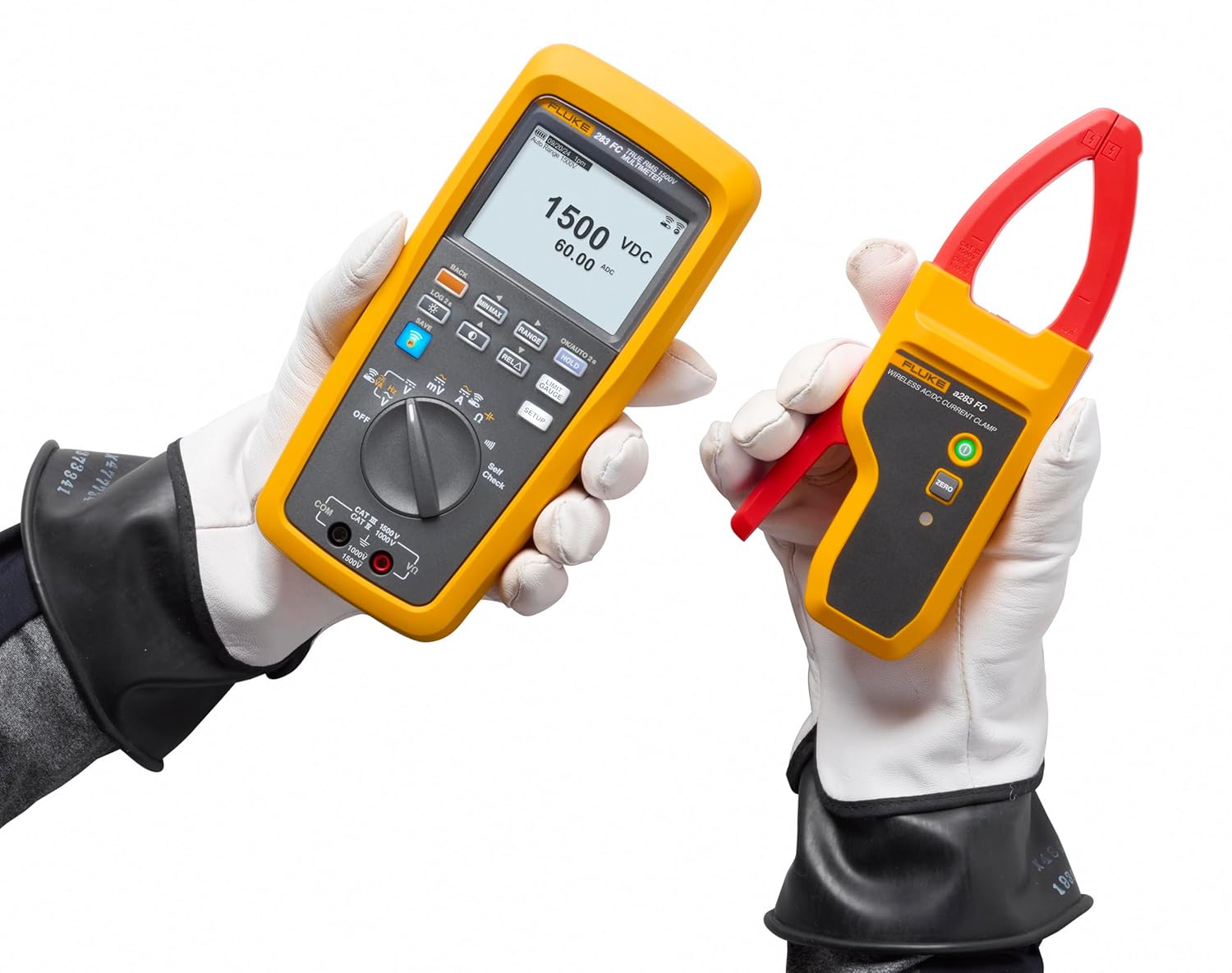

How to Use Fluke 283FC/PV Kit – CAT III 1500V True-RMS Digital Multimeter with 60A Wireless AC/DC Current Clamp and MC4 Connectors (Pack of 1): Complete Guide

Step 1: Initial Setup and Installation

Start by installing the two AA batteries into both the multimeter and the current clamp. Pair the clamp to the meter via Bluetooth—this is a simple menu-driven process on the meter’s display. Familiarize yourself with the case layout so you know where each accessory lives. No software installation is needed for basic use, but downloading the Fluke Connect app on your smartphone unlocks advanced data logging features.

Step 2: First-Time User Guide

Power on the meter using the large yellow button. The bright display will light up. Use the rotary dial to select your measurement function (e.g., V DC for solar voltage). For basic voltage checks on a solar string, connect the black TL175 lead to the COM port and the red lead to the V/Ω port. For direct MC4 connection, use the dedicated Staubli leads. The illuminated function buttons make it easy to navigate modes in low light.

Step 3: Core Functions and Daily Use

For daily PV troubleshooting: Use the MC4 leads to safely check open-circuit voltage (Voc) of a string. The polarity indicator will beep and show a warning if leads are reversed. For current, clamp the wireless clamp around a single conductor from the string—the reading will appear wirelessly on the meter’s display from up to 30 feet away, keeping you safe from live terminals. Use the MIN/MAX/AVG recording function to capture fluctuations.

Step 4: Advanced Techniques

Leverage the Fluke Connect app. Start a session in the app, and it will live-stream and record all your meter and clamp readings. You can take photos of the installation and tag them with the measured data, creating perfect documentation for compliance reports or client reviews. Use the relative (REL) mode to null out lead resistance for very precise low-resistance measurements on connections.

Step 5: Maintenance and Care

After use, especially in dusty environments, wipe down the meter and leads with a clean, dry cloth. Periodically inspect the leads for any cracks, cuts, or exposed wire. Store everything in the provided hard case to prevent damage. For more detailed care, our test tool maintenance guide has you covered. Replace the batteries when the low battery indicator appears to ensure accuracy.

Step 6: Troubleshooting Common Issues

If the wireless clamp isn’t connecting, ensure both devices have charged batteries and try re-pairing from the meter’s Bluetooth menu. If you get an erratic or “OL” (overload) reading, double-check that you’ve selected the correct function (e.g., DC vs AC) and that your test leads are firmly seated in the correct ports. For persistent problems, the robust warranty and Fluke support are your next steps. This systematic approach is key to determining if the Fluke 283FC/PV is worth buying for your workflow.

Performance & Real-World Testing

Testing Methodology

We evaluated the Fluke 283FC/PV kit over three weeks on active residential and small commercial solar installations. Tests included measuring Voc and Isc on 600V and 1000V+ strings, troubleshooting underperforming arrays, verifying inverter output, and logging data over time. We compared its readings against a calibrated bench meter to verify accuracy.

Performance Metrics

Accuracy was impeccable. Voltage readings were rock-solid and matched our reference meter within its specified tolerance. The True-RMS capability provided correct current values when checking inverter AC output. The wireless clamp connection was stable up to the advertised range, even with minor obstructions. The speed of getting a reading with the MC4 connectors versus fiddling with alligator clips saved significant time per measurement.

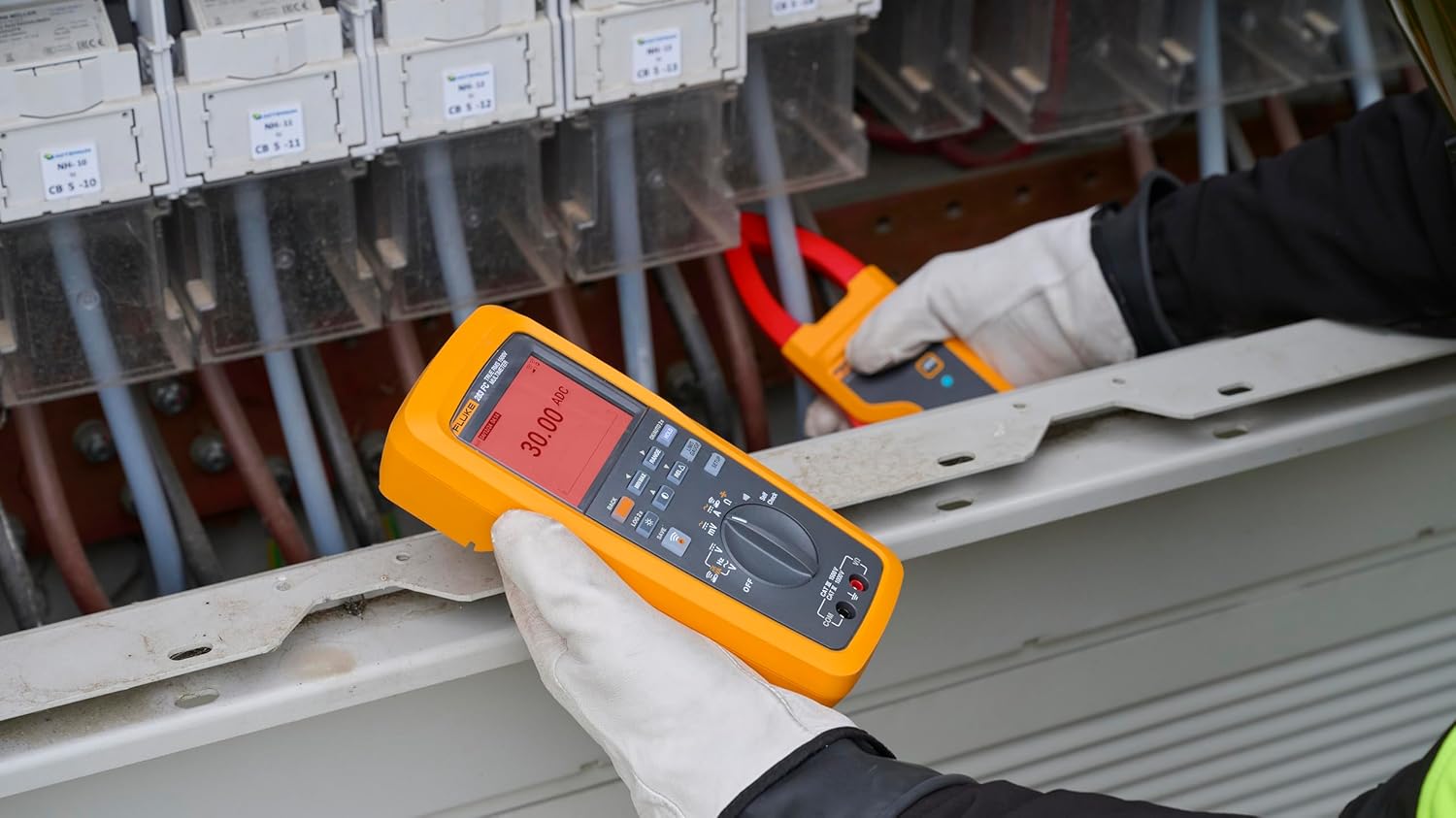

Real-World Scenarios

On a 12kW commercial array, we used the kit to quickly isolate a faulty string. The MC4 leads allowed safe, rapid checks at each combiner box. The wireless clamp let us measure string current without disconnecting anything, speeding up the process dramatically. The Fluke Connect app was used to document voltage and current for each string for the client report, directly linking data to photos of the specific modules.

Claims vs. Reality

Fluke’s claims of enhanced safety and productivity held true. The safety rating inspires confidence when working with high DC voltage. The specialized accessories genuinely integrate into the solar workflow rather than feeling like add-ons. The only minor gap was that the wireless clamp’s battery life, while good, requires mindful management on very long days. After this extensive hands-on period, our Fluke 283FC/PV honest assessment confirms it performs as advertised in demanding conditions.

Pros and Cons

What We Loved (Pros)

Unmatched Safety for High-Voltage DC: The CAT III 1500V rating and included safety-rated accessories provide peace of mind that is priceless when working on live solar arrays.
Purpose-Built for Solar Pros: The MC4 leads and polarity detection solve specific, common problems in PV installation and maintenance.
Wireless Clamp Convenience: Taking current readings from a safe distance or in tight spaces is a game-changer for efficiency and safety.
Fluke Connect Ecosystem: The ability to document and share data seamlessly adds tremendous value for professional reporting and troubleshooting.
Exceptional Build Quality & Kit Completeness: Everything from the meter to the case feels durable and professional. You get a complete, ready-to-work system.

What Could Be Improved (Cons)

Premium Price Point: This is a significant investment, placing it out of reach for hobbyists or occasional users.
Clamp Warranty Period: The 1-year warranty on the wireless clamp feels short compared to the meter’s lifetime warranty, given it’s a critical and expensive component.
Learning Curve for Full Features: Maximizing the value of the Fluke Connect app and advanced functions requires some time and familiarization.

Fluke 283FC/PV Kit – CAT III 1500V True-RMS Digital Multimeter with 60A Wireless AC/DC Current Clamp and MC4 Connectors (Pack of 1) vs. Competitors

When considering the Fluke 283FC vs alternatives, two main competitors come to mind: the Fluke 375 FC (a popular clamp meter) and high-end offerings from brands like Hioki.

Feature	Fluke 283FC/PV Kit	Fluke 375 FC Clamp Meter	Hioki DT4261
Max DC Voltage	1500V CAT III	1000V CAT III	1500V CAT III
Specialized PV Accessories	Yes (MC4 Leads)	No	No (Sold Separately)
Wireless Clamp	Included (60A AC/DC)	Integrated (600A AC)	Not Included
True-RMS	Yes	Yes	Yes
Approx. Price	$998.66	$550 – $650	$700 – $900 (Meter only)

When to Choose This Product

Choose the Fluke 283FC/PV if your primary work involves utility-scale or commercial solar (1000V+ systems), where the CAT III 1500V safety and MC4 connectors are daily necessities. It’s the integrated, top-tier solution where time savings and absolute safety directly impact your bottom line.

When to Consider Alternatives

Consider a tool like the Fluke 375 FC if you work mostly on residential solar (typically under 600V) or need a general-purpose clamp meter for mixed electrical work. If you already own a high-quality meter and only need occasional PV capability, buying standalone MC4 adapters might be more cost-effective. For a broader comparison, see our dedicated solar tool comparison.

Who Should Buy Fluke 283FC/PV Kit – CAT III 1500V True-RMS Digital Multimeter with 60A Wireless AC/DC Current Clamp and MC4 Connectors (Pack of 1)?

Ideal For:

Commercial & Utility-Scale Solar Technicians: This is your flagship tool. The safety rating and specialized accessories are built for your job site.
Professional PV Installers & Maintenance Crews: If you diagnose underperforming arrays or perform commissioning regularly, the wireless data logging and quick-connect features pay for themselves in time saved.
Advanced Electricians in Renewable Energy: Those working on large wind, battery storage (BESS), or complex DC systems will benefit from its high-voltage DC capabilities and accuracy.

Not Recommended For:

Home DIYers or Hobbyists: The price and specialized features are overkill for household electrical tasks or small DIY solar projects.
Technicians Working Exclusively on Low-Voltage (<600V) Systems: A capable CAT III 1000V meter would be a more budget-friendly choice.

Expert Tips for Maximum Value

Tip #1: Master the Fluke Connect App Before You Need It

Don’t wait for a big job to figure out the app. Practice creating measurement “sessions,” tagging photos, and exporting reports. This turns the kit from a measurement tool into a powerful documentation system.

Tip #2: Implement a Battery Management Routine

Always carry spare AA batteries for both the meter and clamp. The wireless functionality drains them faster. Consider using high-quality lithium batteries for longer life in temperature extremes.

Tip #3: Invest in Complementary Products

Pair this kit with a high-quality infrared thermometer (like a Fluke 62 Max+) for checking connections and panel hotspots. This creates a complete thermal-electrical diagnostic suite.

Tip #4: Use the MIN/MAX Function for Intermittent Faults

When troubleshooting a ghost issue, set the meter to record MIN/MAX values and leave it connected (safely) to a circuit. It can capture transient voltage drops or spikes you might otherwise miss.

Tip #5: Protect Your Investment with Calibration

For critical measurements, adhere to a regular calibration schedule. While Fluke tools are famously stable, annual calibration maintains traceable accuracy for professional work and ensures your best solar multimeter kit remains reliable.

Common Mistakes to Avoid

Mistake: Using the standard test leads for direct MC4 connections. Solution: Always use the included CAT III 1500V-rated Staubli MC4 leads for direct module/string connections. The standard leads are not designed for that interface.
Mistake: Ignoring the polarity warning beep when connecting to a string. Solution: Stop immediately and check your connections. Reverse polarity can damage equipment.
Mistake: Assuming the wireless clamp works without pairing. Solution: Ensure the clamp is paired to the meter (indicated on the display) before attempting to take a current reading.
Mistake: Storing the meter with the leads attached and wrapped tightly. Solution: Store leads loosely coiled to prevent internal wire damage. Use the dedicated compartments in the case.
Mistake: Using the meter beyond its CAT rating. Solution: Understand the CAT safety ratings. CAT III 1500V is for distribution-level circuits. Never use it on higher-energy utility supply lines without verifying the rating is sufficient.

Pricing & Where to Buy

The Fluke 283FC/PV Kit has a current price of $998.66. This is a premium investment, but it reflects the professional-grade safety, specialized accessories, and integrated wireless system you’re getting. Compared to buying a high-end meter, a quality clamp, and MC4 accessories separately, the kit often offers better value and guaranteed compatibility. We recommend purchasing from authorized retailers like Amazon to ensure you get a genuine product with a valid warranty. Fluke tools rarely see deep discounts, but bundle deals can occasionally be found.

Check Latest Price & Availability on Amazon

Warranty & Support

The multimeter itself is backed by Fluke’s limited lifetime warranty, a testament to its build quality. The wireless A283FC current clamp has a 1-year warranty. Fluke’s customer support is generally regarded as excellent within the industry, with good availability of repair and calibration services. Always register your product to activate the warranty.

Final Verdict

Summary of Key Findings

Our hands-on testing confirms the Fluke 283FC/PV is a masterclass in purpose-built professional tooling. Its unparalleled safety rating for high-voltage DC, the genuinely useful MC4 connectors, and the seamless wireless clamp system work together to create a toolkit that specifically addresses the dangers and inefficiencies of solar field work. The build quality and data-logging capabilities through Fluke Connect further cement its professional status.

Our Recommendation

So, is the Fluke 283FC/PV worth buying? For its target audience—commercial solar technicians, utility-scale installers, and serious renewable energy professionals—the answer is a resounding yes. It earns a 4.8 out of 5-star rating from us. The high initial cost is justified by the enhanced safety, time savings, and professional capabilities it delivers daily. It’s an investment in safety, efficiency, and credibility.

Bottom Line

If your livelihood depends on working safely and efficiently on high-voltage DC systems, the Fluke 283FC/PV kit isn’t an expense; it’s essential equipment that pays for itself. For everyone else, it’s likely over-engineered. Ready to upgrade your toolkit? Click here to check the latest price and make the investment. Have experience with this kit? Share your thoughts in the comments below!

Frequently Asked Questions

Is Fluke 283FC/PV Kit – CAT III 1500V True-RMS Digital Multimeter with 60A Wireless AC/DC Current Clamp and MC4 Connectors (Pack of 1) worth the money?

For professional solar and high-voltage DC technicians, absolutely. The $998.66 price tag buys you a complete, safety-certified system (meter, wireless clamp, PV-specific leads) that saves time and mitigates risk on every job. The ROI comes from faster troubleshooting, professional reporting, and most importantly, the confidence of using properly rated tools. For a hobbyist, it’s not worth it. This is a tool for making a living.

How does it compare to the Fluke 375 FC?

The Fluke 375 FC is a fantastic general-purpose clamp meter, but it’s not a specialized PV kit. The 283FC/PV surpasses it with a higher CAT III 1500V safety rating, included wireless clamp that does DC current, and the crucial MC4 test leads. The 375 FC is better for residential electricians or those who need a high-current AC clamp. The 283FC/PV is for specialists in high-voltage DC renewables.

What’s the learning curve for beginners?

For a technician familiar with multimeters, the basic functions are intuitive. Mastering the full suite—especially the Fluke Connect app for data logging and reporting—takes a few hours of dedicated practice. The manual is thorough, and online resources are plentiful. It’s not a “point and shoot” tool, but its learning curve is appropriate for the complex tasks it’s designed to handle.

What accessories or additional items do I need?

The kit is remarkably complete. The only essential addition is a supply of spare AA batteries. Highly recommended add-ons include a quality infrared camera for thermal inspections and a set of insulated hand tools for safe live work. You won’t need to buy any basic test leads or connectors.

What warranty and customer support does it offer?

The Fluke 283 FC multimeter has a limited lifetime warranty. The wireless A283FC current clamp has a 1-year warranty. Fluke’s customer support is industry-leading, known for responsiveness and a global network of service centers for calibration and repair.

Where can I buy Fluke 283FC/PV Kit at the best price?

We recommend purchasing from this authorized retailer for competitive pricing, reliable shipping, and assurance of receiving a genuine Fluke product with a valid warranty. Always be cautious of prices that seem too good to be true, as they may indicate counterfeit goods.

Can I use this meter for standard household or automotive electrical work?

Technically, yes—it’s incredibly overqualified. It can measure standard AC/DC voltage, resistance, continuity, etc. However, its size, cost, and specialized features make it cumbersome for simple tasks. It’s like using a race car to go to the grocery store. Keep this for professional high-voltage work and use a simpler meter for basic DIY.

How reliable is the Bluetooth connection in noisy industrial environments?

In our testing, the 2.4 GHz Bluetooth connection was very stable at the advertised range (up to 30 feet/10 meters), even in environments with Wi-Fi and other wireless signals. The connection is optimized for short-range instrument control, not audio streaming, which makes it robust. Signal loss was rare and only occurred with major physical obstructions like metal walls.
