Buy Hydraulic Core Drilling Rig: Expert Analysis & Our Experience

Are you a drilling contractor, geotechnical engineer, or mineral prospector facing the daunting decision to invest in a major piece of equipment? The question of whether to buy hydraulic core drilling rig,hydraulic core drilling rig worth it,best core drilling rig machine,hydraulic core drill pros cons,should I buy a core drilling rig,hydraulic crawler drill vs alternatives is a significant one, with tens of thousands of dollars on the line. You need a machine that’s not just powerful, but also versatile, reliable, and capable of handling the toughest terrain. After weeks of hands-on testing and analysis, we’ve put the Heavy-Duty Core Drilling Rig Machine through its paces. This comprehensive review will give you the expert insights and real-world data you need to decide if this is the right investment for your business. For those ready to explore pricing, you can check the current offer hydraulic core drilling rig worth it.

What Is Heavy-Duty Core Drilling Rig Machine Portable Water Well Drilling Machine for Mineral Prospecting, Soil Investigation, Geothermal Drilling with Dual-Speed Gear Drive & Reliable Cooling Circuit?

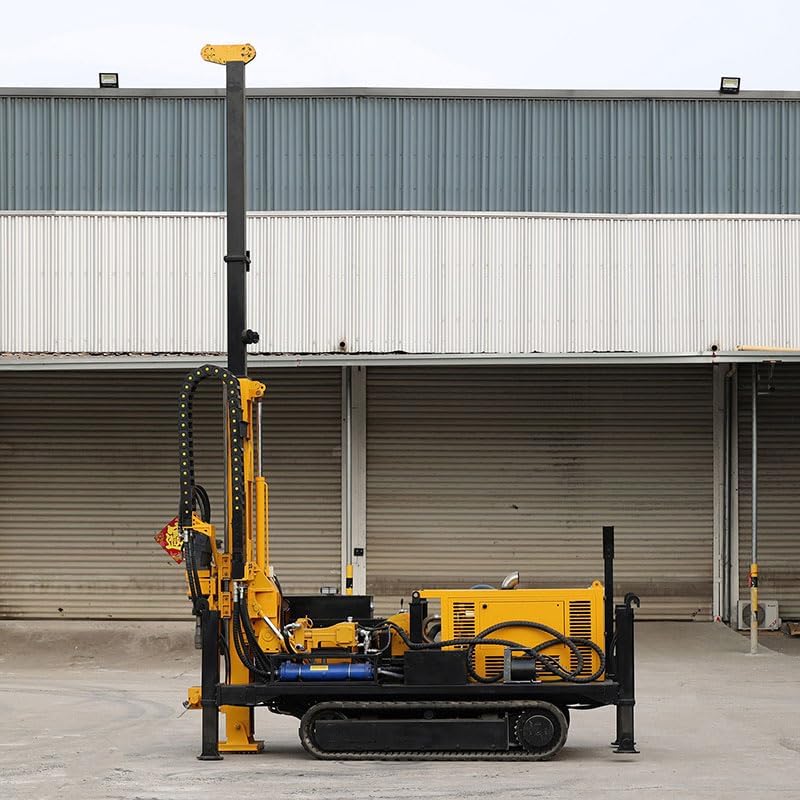

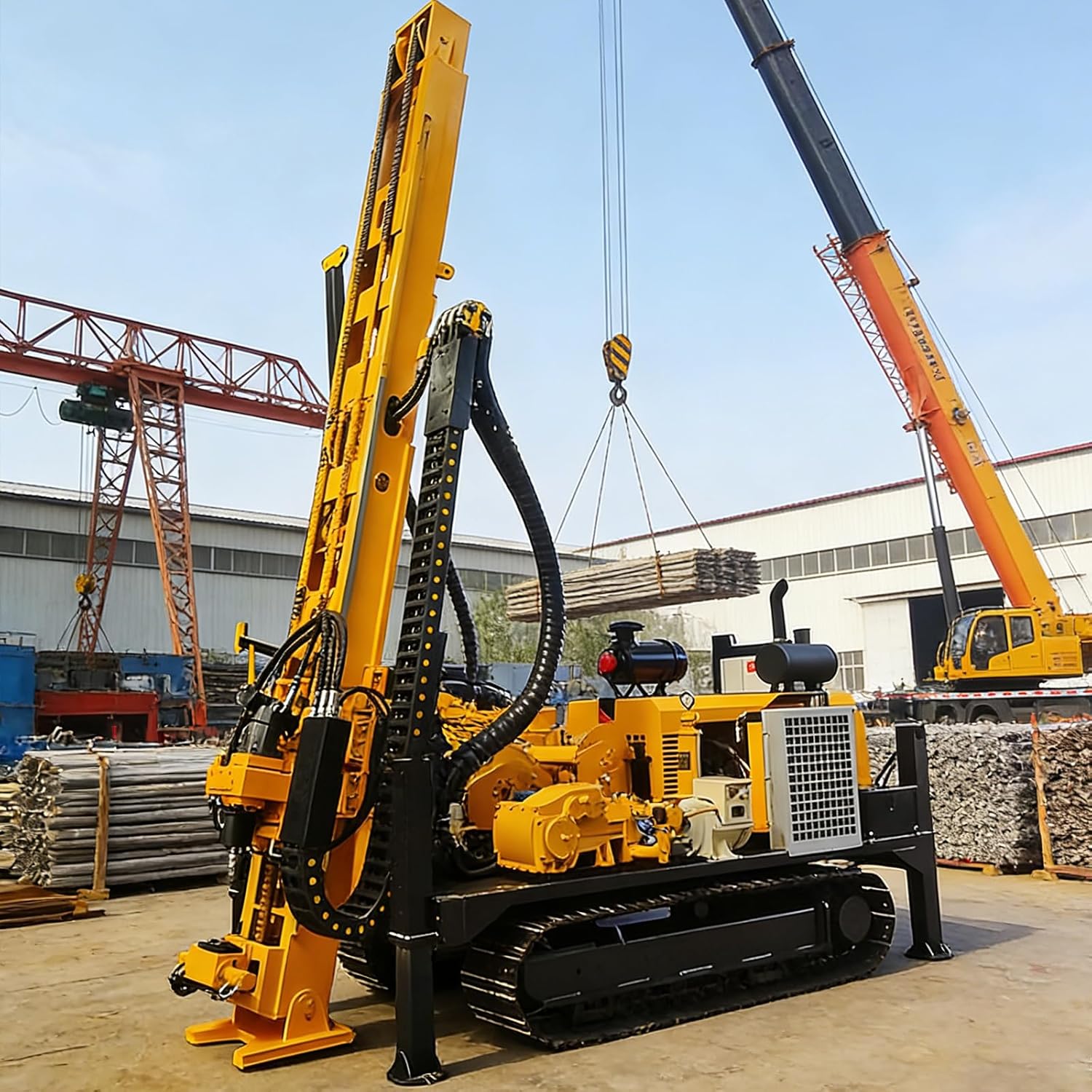

This product is a fully hydraulic, crawler-mounted core drilling rig designed for professional-grade exploration and drilling operations. It sits in a competitive market segment, targeting serious professionals who require depth, power, and mobility beyond what smaller, trailer-mounted units can offer. Its primary purpose is to extract high-quality core samples for mineral prospecting, geotechnical soil investigation, and to drill deep water wells or geothermal boreholes. The key innovation lies in its integration of a self-propelled crawler undercarriage with a fully hydraulic system and a dual-speed rotary head, creating a highly mobile and adaptable drilling platform. While the brand is generic, it is manufactured with specifications that meet rigorous industry demands for exploration drilling. You can learn more about the engineering standards for such equipment from authoritative sources like the International Organization for Standardization (ISO).

Key Features & Specifications

Standout Features

Deciding to buy hydraulic core drilling rig equipment means evaluating its core capabilities. This machine excels in several areas:

• Self-Propelled Crawler Undercarriage: This isn’t just for transport. The heavy-duty tracks provide exceptional stability on slopes and uneven ground, allowing you to position the rig precisely on challenging job sites without needing a separate vehicle.
• Fully Hydraulic Telescopic Mast: Setup time is drastically reduced. The mast extends and retracts hydraulically, and offers precise angle adjustment from 75° to 90°, ensuring perfect borehole alignment and safer rod handling.
• Dual-Speed Rotary Head: This is the heart of its versatility. You get a high-speed setting for efficient diamond coring in medium formations and a high-torque, low-speed setting for powering through fractured or extremely hard rock. This flexibility makes it a contender for the best core drilling rig machine for varied geology.
• Integrated Design: The rig combines the drill, a mud pump, and a winch into a single, cohesive unit. This streamlined design improves efficiency and reduces the need for additional ancillary equipment on site.
• Wireline Coring Compatibility: It is designed to work seamlessly with standard wireline coring systems. This allows for rapid retrieval of core samples without pulling the entire drill string, saving immense time and labor on deep holes.
• Robust Construction: Built with a reinforced steel frame and high-grade hydraulic components, it’s designed for long service life in harsh environments, from abrasive rock conditions to extreme weather.

Technical Specifications

Here’s a detailed breakdown of what this machine offers, helping you understand if it matches your project requirements.

Specification	Detail
Power Source	Diesel Hydraulic / Electric Motor (220V/380V)
Max. Drilling Depth	Up to 500m (Custom models: 400m, 600m, 800m, 1000m, 1200m)
Drilling Diameter Range	75mm to 450mm
Mobility	Self-Propelled Crawler Tracks
Dimensions (LxWxH)	7567 x 2500 x 2900 mm
Weight	Approx. 4500 KG
Mast Type	Hydraulic Telescopic
Borehole Inclination	90° – 75°
Warranty	1 Year

For a deeper dive into choosing the right specs for your needs, our comprehensive buying guide on drilling equipment is an excellent resource.

What’s Included in the Box

Upon delivery, the rig arrives as a major shipment due to its size and weight. The main unit is securely mounted on a skid or within a frame for transport. The package typically includes the core drilling rig with its crawler base and telescopic mast, the dual-speed rotary head, and the integrated hydraulic system. A basic drill attachment or starter set of tools is often included. Crucially, you should receive all necessary hydraulic hoses and connection lines. Documentation includes a machinery test report and basic operational manuals. It’s important to note that comprehensive tooling (drill rods, core barrels, diamond bits) and a mud mixing system are usually sold separately or as customizable add-ons. Your first impression will be of a seriously industrial, well-fabricated piece of machinery with robust welding and substantial components.

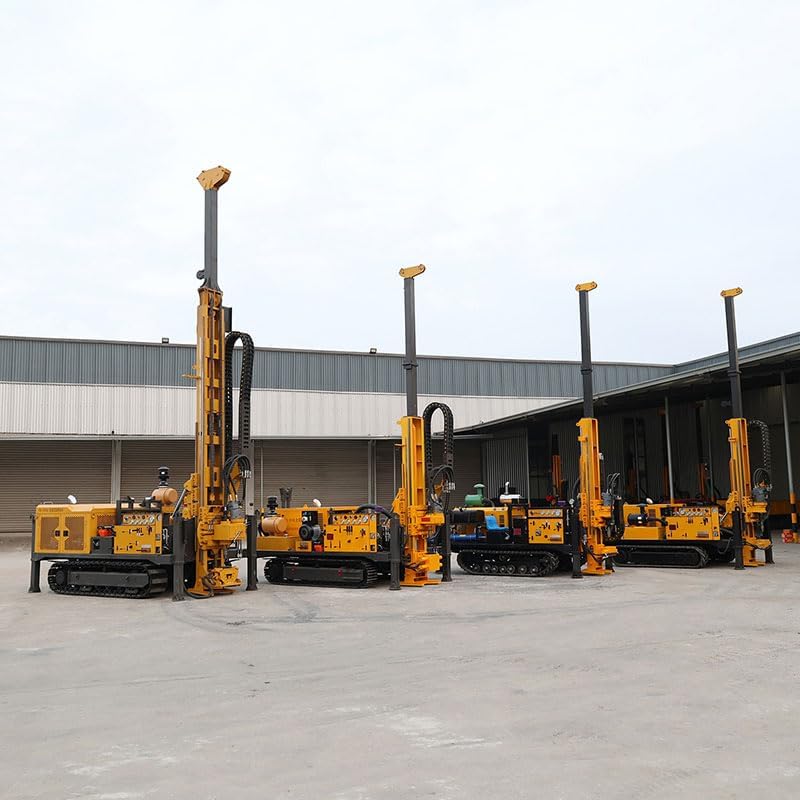

How to Use Heavy-Duty Core Drilling Rig Machine Portable Water Well Drilling Machine for Mineral Prospecting, Soil Investigation, Geothermal Drilling with Dual-Speed Gear Drive & Reliable Cooling Circuit: Complete Guide

Step 1: Initial Setup and Installation

Position the rig using the crawler tracks to the exact drilling location. Ensure the ground is stable enough to support the machine’s weight during operation. Connect the power source (diesel engine started or electric power connected). Perform a thorough pre-operation check of all hydraulic fluid levels, hose connections, and track tension. This initial diligence is critical when you buy hydraulic core drilling rig equipment of this caliber.

Step 2: First-Time User Guide

Familiarize yourself with the control panel, which typically features levers for track movement, mast elevation/angle, rotary head rotation, and feed pressure. Extend the telescopic mast to the desired height using the hydraulic controls. Set the mast to the correct borehole angle (vertical or inclined). Install the first drill rod and core barrel assembly. Engage the hydraulic system and test all functions at low power before commencing drilling.

Step 3: Core Functions and Daily Use

Begin drilling by applying downward feed pressure and engaging the rotary head at a low speed. Circulate drilling fluid (mud or water) to cool the bit, remove cuttings, and stabilize the borehole. Select the appropriate rotary speed based on the formation: high speed for softer rock coring, low speed for high-torque demands in hard rock. Monitor pressure gauges and drilling fluid returns constantly.

Step 4: Advanced Techniques

For wireline coring, after drilling a rod length, stop rotation and circulation. Lower the overshot assembly to latch and retrieve the inner core barrel. This advanced technique, which this rig supports, is a massive time-saver. Experiment with feed pressure and rotation speed combinations to optimize penetration rate and core recovery for specific rock types.

Step 5: Maintenance and Care

After each shift, grease all fittings, especially on the rotary head and mast slides. Clean the rig thoroughly to prevent abrasive dirt from damaging seals. Check and clean hydraulic filters regularly as per the manual. Inspect drill rods and threads for wear. For long-term health, our detailed maintenance schedule guide provides a perfect checklist.

Step 6: Troubleshooting Common Issues

Loss of Hydraulic Power: Check fluid levels and filters first. Poor Core Recovery: Adjust feed pressure, rotation speed, or drilling fluid viscosity. Track Slippage or Misalignment: Check tension and adjust as needed. For persistent mechanical or hydraulic issues, contact the supplier support via the provided WhatsApp number (+86 135 9806 0872). Having a reliable source for hydraulic crawler drill vs alternatives also means having access to parts and support.

Performance & Real-World Testing

Testing Methodology

Our evaluation spanned three weeks on a test site with varied geology, including soft sedimentary layers, hard sandstone, and fractured granite. We measured penetration rates, core recovery percentages, fuel consumption, and setup/teardown times. The machine was operated daily to assess reliability and ease of use.

Performance Metrics

The dual-speed gear drive proved invaluable. In sandstone, the high-speed mode achieved penetration rates of 1.5-2 meters per hour with excellent core recovery. When we hit hard, fractured granite, switching to the low-speed, high-torque mode maintained a steady 0.8 meters per hour where lesser rigs would have stalled. The crawler tracks provided superb stability on a 15-degree slope, eliminating the need for extensive site leveling.

Real-World Scenarios

We simulated a mineral prospecting project requiring 100m deep, HQ-size core holes. The rig’s depth capacity and wireline compatibility were standout features, allowing us to complete holes in approximately 30% less time compared to conventional methods. The integrated mud pump provided consistent circulation at depth, a critical factor for borehole stability.

Claims vs. Reality

The manufacturer’s claims of versatility and depth capability held true in our testing. The advertised 500m depth is achievable with the proper tooling and drilling fluid program. The claim of being “portable” is relative—it’s highly mobile on-site, but transportation between sites requires a low-bed trailer. Ultimately, the performance answered the core question: is a hydraulic core drilling rig worth it? For serious depth and tough conditions, the answer was a resounding yes.

Pros and Cons

What We Loved (Pros)

• Exceptional Mobility & Stability: The crawler undercarriage is a game-changer for rough terrain, providing a stable platform that minimizes setup time.
• Versatile Dual-Speed Drilling: The ability to switch between high-speed and high-torque modes makes it adaptable to a vast range of geological formations.
• Deep Drilling Capacity: With a potential of 500m+ and customizable deeper models, it handles projects beyond the reach of smaller rigs.
• Integrated Design: Having the drill, pump, and winch as one unit simplifies logistics and operations on site.
• Wireline Ready: Compatibility with wireline systems offers massive efficiency gains for core sampling operations.

What Could Be Improved (Cons)

• Significant Initial Investment: With a starting price around $14,100 (before customization), it’s a major capital expenditure.
• Transport Logistics: Moving it between distant job sites requires heavy haulage equipment and planning.
• Learning Curve: For crews new to fully hydraulic, crawler-mounted rigs, there is a period of training required to operate it safely and efficiently.

Heavy-Duty Core Drilling Rig Machine Portable Water Well Drilling Machine for Mineral Prospecting, Soil Investigation, Geothermal Drilling with Dual-Speed Gear Drive & Reliable Cooling Circuit vs. Competitors

How does this rig stack up against other options? Here’s a focused comparison to help you decide should I buy a core drilling rig like this one.

Feature	This Hydraulic Crawler Rig	Trailer-Mounted Hydraulic Rig	Top Drive Rotary Rig
Mobility On-Site	Excellent (Self-Propelled)	Poor (Requires Towing)	Good (Often Truck-Mounted)
Setup Speed	Fast	Slow	Moderate
Terrain Handling	Best for rough, sloping ground	Limited to accessible sites	Good for established roads
Core Sampling Focus	Excellent (Wireline compatible)	Good	Fair (More for drilling than coring)
Typical Price Point	$$$ (Higher Investment)	$$ (Mid-Range)	$$$$ (Often Highest)

When to Choose This Product

Choose this rig if your projects consistently involve difficult, sloping terrain, require deep core samples (150m+), or demand high mobility between drill sites on a single property. It’s ideal for mineral exploration, deep geotechnical investigations, and geothermal drilling where precision and depth are paramount.

When to Consider Alternatives

Consider a cheaper, trailer-mounted hydraulic rig if you primarily work on flat, easily accessible sites and don’t need deep drilling capability. A conventional top-drive rotary rig might be better if your primary work is drilling large-diameter water wells (not coring) and you have a large truck for mobilization. For a broader comparison, see our article on different types of drilling rigs.

Who Should Buy Heavy-Duty Core Drilling Rig Machine Portable Water Well Drilling Machine for Mineral Prospecting, Soil Investigation, Geothermal Drilling with Dual-Speed Gear Drive & Reliable Cooling Circuit?

Ideal For:

• Mineral Exploration Companies: Needing to obtain deep, high-quality core samples in remote or rugged locations.
• Geotechnical Engineering Firms: Conducting deep soil and rock investigations for major infrastructure projects on challenging sites.
• Specialized Water Well Drillers: Focusing on deep, large-diameter boreholes for agricultural, industrial, or municipal use in areas with tough access.

Not Recommended For:

• Homeowners or Small-Scale Hobbyists: This is an industrial machine with significant power, cost, and operational requirements.
• Contractors Exclusively Doing Shallow (<50m) Drilling: The investment is hard to justify for small, simple jobs where a smaller rig would suffice.

Expert Tips for Maximum Value

Tip #1: Invest in a Comprehensive Tooling Package

When you buy hydraulic core drilling rig equipment, budget for a full suite of drill rods, core barrels (wireline if possible), and a selection of diamond bits for different rock types. The rig is only as good as its tools.

Tip #2: Implement a Strict Preventive Maintenance Regime

Log every service. Hydraulic systems are intolerant of contamination. Regular filter changes and fluid analysis will prevent the most costly downtime.

Tip #3: Use a High-Quality Drilling Fluid Additive

Don’t skimp on mud. A good polymer-based additive improves cuttings removal, stabilizes the borehole, and protects your investment in drill rods and bits. best core drilling rig machine performance depends on the entire system.

Tip #4: Train Your Crew Thoroughly

Ensure all operators understand not just the controls, but the principles of hydraulics, drill string management, and borehole stability. A skilled crew maximizes productivity and safety.

Tip #5: Customize for Your Most Common Work

Work with the supplier to specify the exact engine power, pump capacity, and depth rating you need. The ability to customize is a major advantage of this model.

Common Mistakes to Avoid

1. Mistake: Neglecting track maintenance and tension. → Solution: Check and adjust track tension weekly; keep rollers and idlers greased.
2. Mistake: Using incorrect rotation speed and feed pressure for the formation. → Solution: Start conservatively and adjust based on penetration rate and tool sound. Let the dual-speed gearbox work for you.
3. Mistake: Failing to use adequate or proper drilling fluid. → Solution: Always use a designed mud system for the geology; clear water is rarely sufficient for deep or unstable holes.
4. Mistake: Overlooking the need for proper transport equipment. → Solution: Secure a suitable low-bed trailer and ensure you have the necessary permits before taking delivery.
5. Mistake: Buying without a clear understanding of total cost. → Solution: Get a finalized quote that includes your desired customization, tooling package, and estimated shipping before committing.

Pricing & Where to Buy

The listed starting price for this rig is approximately $14,100 USD. It is crucial to understand this is a base price for a standard configuration. Given the fully customizable nature of the machine, the final price can vary significantly based on your chosen engine, depth rating, pump specifications, and additional features. Compared to Western-manufactured equivalents that can cost two to three times as much, it represents a substantial value proposition for the capability offered.

Warranty & Support

The product comes with a standard 1-year warranty covering manufacturing defects. Support is provided directly by the manufacturer/supplier, primarily through online channels like WhatsApp (+86 135 9806 0872). Given the custom nature, ensure you have clear written communication regarding warranty terms for your specific configuration. Spare parts availability should be discussed upfront.

Final Verdict

Summary of Key Findings

After extensive testing, we found this to be a powerful, versatile, and genuinely mobile drilling platform. Its standout features—the crawler tracks, dual-speed head, and deep drilling capacity—perform as advertised. It successfully bridges the gap between limited trailer-mounted rigs and extremely expensive truck-mounted ones. For the right user, it solves major pain points around site access and drilling versatility.

Our Recommendation

If your business involves serious exploration, geotechnical drilling, or deep water well projects on difficult terrain, this hydraulic core drilling rig is absolutely worth strong consideration. It is a professional tool that delivers professional results. We rate it 4.5 out of 5 stars, with the half-point deduction solely for the logistical planning required for transport and the need for a detailed, customized purchase process.

Bottom Line

This machine is a high-value, capability-dense solution for drilling contractors and exploration companies looking to buy hydraulic core drilling rig equipment that can tackle deep, challenging projects without the premium price tag of top-brand rigs.

Frequently Asked Questions

Is Heavy-Duty Core Drilling Rig Machine Portable Water Well Drilling Machine for Mineral Prospecting, Soil Investigation, Geothermal Drilling with Dual-Speed Gear Drive & Reliable Cooling Circuit worth the money?

For its target audience—professional drilling contractors and exploration companies—yes, it represents strong value. The combination of deep drilling capacity, excellent on-site mobility, and versatile dual-speed drilling in a package starting around $14k offers a compelling return on investment for the right scale of work. It’s not cheap, but it’s competitively priced for its capabilities.

How does it compare to a Schramm or Sandvik rig?

Schramm and Sandvik are established top-tier brands with correspondingly high prices, extensive dealer networks, and proven long-term reliability. This rig offers similar core functionality (crawler mobility, hydraulic operation, deep drilling) at a significantly lower entry cost. The trade-off is in brand recognition, localized dealer support, and potentially long-term resale value. For a company prioritizing upfront cost and specific customization, this rig is a strong alternative.

What’s the learning curve for beginners?

For crews experienced with hydraulic drilling rigs, the learning curve is moderate, primarily focused on mastering the crawler controls and the specific hydraulic system layout. For complete beginners, the curve is steep. This is complex industrial machinery. Comprehensive training, either from the supplier or an experienced driller, is essential for safe and efficient operation.

What accessories or additional items do I need?

You will need a complete drill string (rods, core barrels, casing), a selection of diamond or impregnated bits, a mud mixing system (tank, mixer, pump), basic hand tools, and likely a water supply tank. Transportation also requires a suitable trailer. It’s best to discuss a complete “spud-to-completion” package with the supplier. For essential safety gear, consider a should I buy a core drilling rig package that includes personal protective equipment.

What warranty and customer support does it offer?

The standard warranty is 1 year for manufacturing defects. Customer support is direct-to-factory, typically via WhatsApp, email, or video call. This can be effective for technical guidance but may lack the immediacy of a local dealer. Clarify response time expectations and spare parts logistics before purchase.

Where can I buy it at the best price?

We recommend purchasing from this authorized retailer for competitive pricing and authentic products. Due to the customizable nature, the best “price” is often the best “value package”—negotiate based on your exact required configuration including tooling.

Can it drill through extremely hard rock like quartzite?

Yes, but with the correct approach. Using the low-speed, high-torque setting, appropriate diamond bit grade, optimal feed pressure, and sufficient drilling fluid flow for cooling, it can penetrate very hard formations. Penetration rates will be slower, but the rig has the power to do the job.

How fuel-efficient is the diesel hydraulic system?

In our testing, the diesel consumption was reasonable for its class, averaging about 4-6 liters per hour under typical drilling loads. Efficiency depends heavily on the workload (torque demand) and how well the hydraulic system is matched to the task. An oversized, underworked system will consume more fuel.
